Shashank Stainless is one of the leading companies engaged in manufacturers and suppliers in Dubai, UAE, of stainless steel products. It is totally dedicated to customer satisfaction and a quality product provider for various industry segments. This company is specially engaged in stainless steel solutions. Shashank Stainless is one of its vast product lines it is known for high-quality stainless steel 904L forged fittings. The fittings are designed to gain strength in harsh conditions and deliver superior strength, reliability, and acid and corrosion resistance. Shashank Stainless remains the partner of choice for businesses seeking quality stainless steel products, keeping innovation and quality at the heart of operations.
Stainless Steel 904L is highly corrosion resistant, especially in acidic environments. The alloy contains approximately 24% chromium, 19% nickel, 4.5% molybdenum, and small traces of other elements. It features superior resistance to pitting and crack corrosion with excellent ductility and good weldability. Advantages of 904L forged fittings are excellent durability under extreme conditions, longevity, and less maintenance than other stainless steels, thus ideal for the chemical industry and marine environment applications.
| Standards | ASTM B649 / ASME SB649 |
| Specifications | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Rating Pressure | Threaded End – 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 – 5.00 | 23.00 | – |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 28.00 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 75 | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 904L forged fittings, rigorously testing them for durability, strength and corrosion resistance. Each fitting undergoes extensive quality control procedures and is certified to appropriate industry standards. Certifications such as material testing reports (MTRs) and third-party reviews ensure reliability and efficiency.

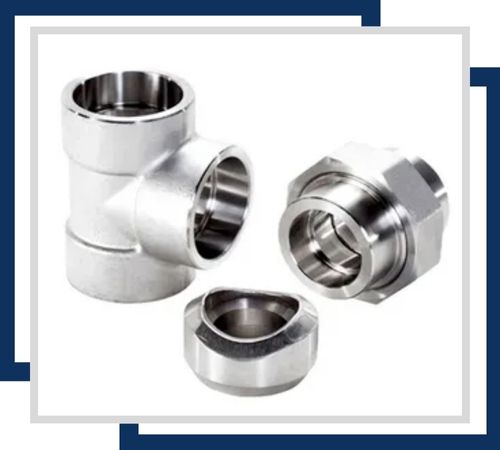

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

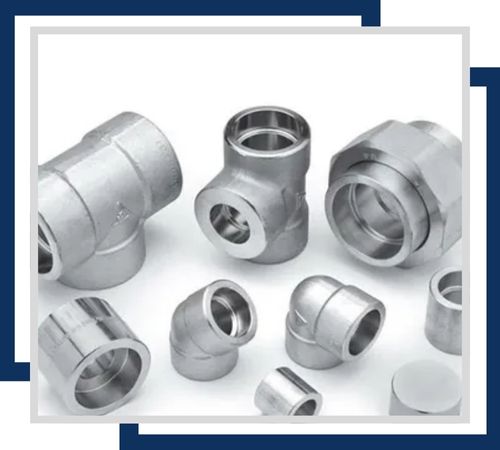

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

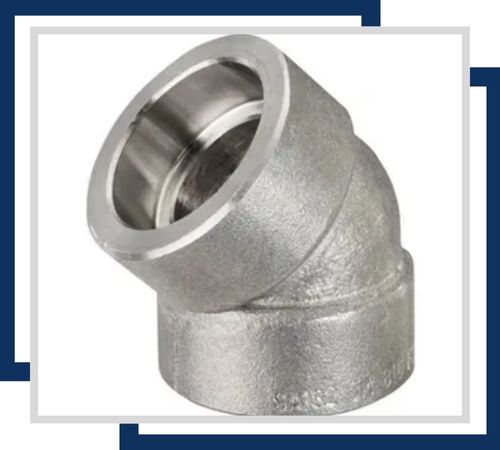

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

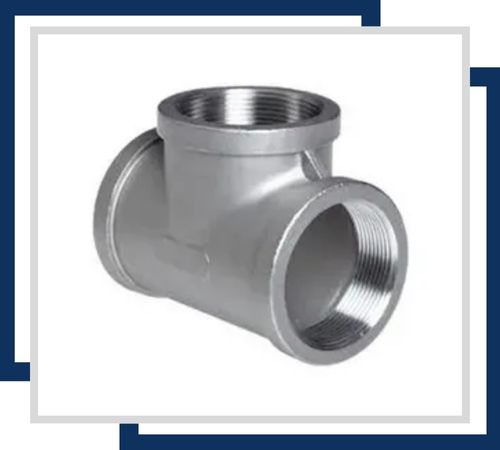

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

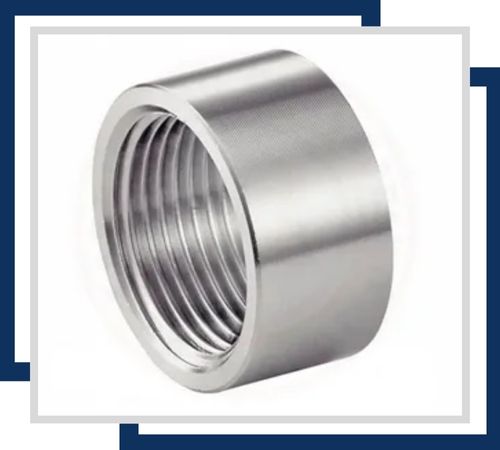

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

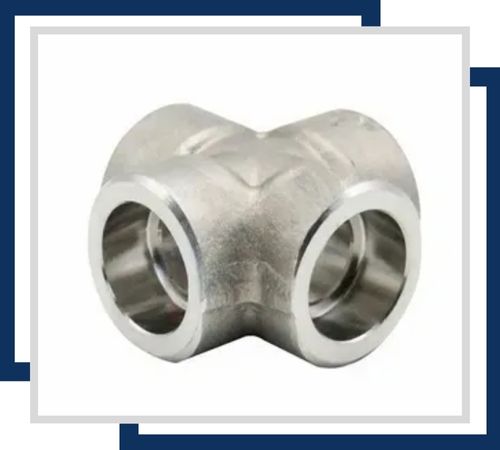

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless steel 904L forged fittings are widely used in various industries due to their exceptional corrosion resistance and superior strength. These inserts are ideal for environments with harsh chemicals, high temperatures and high pressures. Typical uses include chemicals, fuels, pharmaceuticals and the maritime industry. Used in pipelines, heat exchangers, pressure vessels and reactor vessels, where corrosion resistance from acids such as sulfuric acid and chloride is required Furthermore, 904L mesh fittings are suitable for food and beverage, oil and gas and the electrical industry, Due to its durability, and reliability in demanding applications.
